Draaiverbindingen uit aluminium
met buitenvertanding
Type LVE

5% discount
on your first online order!
Franke draaiverbindingen type LVE met buitenvertanding zijn gemaakt van gewichtsbesparend aluminium. Ze zijn hoog belastbaar en geschikt voor medium toerentallen.
Description
Franke draaiverbindingen type LVE zijn direct te monteren draaikransen uit aluminium met tandriemvertanding. Met de geÏntegreerde lagerelementen zijn ze geschikt voor medium draaisnelheden en nauwkeurigheden. Diverse diameters zijn uit voorraad leverbaar. Met het 4-punts contact draadlager zijn belastingen vanuit alle richtingen op te nemen; de draaiverbinding is ongevoelig voor stoot belasting en trillingen en is 2-zijdig afgedicht. Ze zijn spelingsvrij afgesteld; de voorspanning is instelbaar.
Properties - Evaluation
Smooth running | |
Resilience | |
Speed | |
Stiffness | |
Weight | |
Price |
Technical data
Material
Binnen-/buitenring: aluminium, geanodiseerd
Loopringen: gehard en ontlaat chroom-silicium staal
Rollende elementen: chroomstaal
Kooi: polyamide of thermoplastisch polyurethaan
Afdchting: NBR
Gearing
AT10
Operating temperature
–20 °C tot +80 °C, kortstondig tot +100 °C
Peripheral speed
Max. 5 m/s, zonder dichtingen max. 10 m/s
Lubricant
Shell Gadus S3 V220 C2
Relubrication
Door smeernippel volgens DIN 3405
Technical advice
Data tables
Compare data and calculate load cases

LVE Table part 1 | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Name | KKØ mm |
Dimensions mm |
Attachment per ring | ||||||||||||
Ds | Dd | H | H1 | H2ZB | Dg | dw | Tse | T1g | Dah8 | DiH8 | TkA | TkI | |||
LVE-0100 | 100 | 11 | 6,6 | 34+/-0,4 | 27 | 22 | M 6 | 160 | 6,8 | 10 | 150 | 50 | 135 | 65 | 6x |
LVE-0150 | 150 | 11 | 6,6 | 34+/-0,4 | 27 | 22 | M 6 | 210 | 6,8 | 10 | 200 | 100 | 185 | 115 | 6x |
LVE-0200 | 200 | 11 | 6,6 | 34+/-0,4 | 27 | 22 | M 6 | 260 | 6,8 | 10 | 250 | 150 | 235 | 165 | 8x |
LVE-0250 | 250 | 11 | 6,6 | 34+/-0,4 | 27 | 22 | M 6 | 320 | 6,8 | 10 | 300 | 200 | 285 | 215 | 10x |
LVE-0300 | 300 | 15 | 9,0 | 38+/-0,4 | 31 | 26 | M 8 | 372 | 9,0 | 15 | 360 | 240 | 340 | 260 | 12x |
LVE-0350 | 350 | 15 | 9,0 | 38+/-0,4 | 31 | 26 | M 8 | 423 | 9,0 | 15 | 410 | 290 | 390 | 310 | 14x |
LVE-0400 | 400 | 18 | 11,0 | 44+/-0,5 | 37 | 32 | M 10 | 483 | 11,0 | 15 | 470 | 330 | 445 | 355 | 14x |
LVE-0450 | 450 | 18 | 11,0 | 44+/-0,6 | 37 | 32 | M 10 | 534 | 11,0 | 15 | 520 | 380 | 495 | 405 | 14x |
LVE-0500 | 500 | 20 | 14,0 | 49+/-0,5 | 42 | 35 | M 12 | 594 | 13,0 | 20 | 580 | 420 | 550 | 450 | 14x |
LVE-0600 | 600 | 20 | 14,0 | 49+/-0,5 | 42 | 35 | M 12 | 693 | 13,0 | 20 | 680 | 520 | 650 | 550 | 16x |
LVE-0700 | 700 | 20 | 14,0 | 53+/-0,5 | 45 | 38 | M 12 | 808 | 13,0 | 20 | 790 | 610 | 750 | 650 | 22x |
LVE-0800 | 800 | 20 | 14,0 | 53+/-0,5 | 45 | 38 | M 12 | 920 | 13,0 | 20 | 890 | 710 | 850 | 750 | 24x |
LVE-0900 | 900 | 20 | 14,0 | 53+/-0,7 | 45 | 38 | M 12 | 1020 | 13,0 | 20 | 990 | 810 | 950 | 850 | 24x |
LVE-1000 | 1000 | 20 | 14,0 | 53+/-0,7 | 45 | 38 | M 12 | 1120 | 13,0 | 20 | 1090 | 910 | 1050 | 950 | 26x |
LVE-1200 | 1200 | 26 | 18,0 | 60+/-0,5 | 52 | 44 | M 16 | 1320 | 17,5 | 25 | 1300 | 1100 | 1265 | 1135 | 30x |
LVE-1400 | 1400 | 26 | 18,0 | 60+/-0,5 | 52 | 44 | M 16 | 1520 | 17,5 | 25 | 1500 | 1300 | 1465 | 1335 | 36x |
LVE-1600 | 1600 | 26 | 18,0 | 90+/-0,5 | 82 | 69 | M 16 | 1752 | 17,5 | 25 | 1730 | 1470 | 1685 | 1515 | 42x |
LVE-1800 | 1800 | 26 | 18,0 | 90+/-0,5 | 82 | 69 | M 16 | 1956 | 17,5 | 25 | 1930 | 1670 | 1885 | 1715 | 46x |
LVE Table part 2 | MyFranke | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Name | KKØ mm |
Load ratings kN |
Stat. M. kNm |
Effective circle diameter mm |
Weight kg |
CAD-Download Calculate loads |
||||
C0a | C0r | Ca | Cr | C0m | AT10 | z | ||||
LVE-0100 | 100 | 54 | 25 | 18 | 15 | 1,27 | 165,52 | 52 | 1,2 |
Register now to get |
LVE-0150 | 150 | 82 | 39 | 21 | 18 | 2,90 | 216,45 | 68 | 1,8 | |
LVE-0200 | 200 | 110 | 52 | 23 | 20 | 5,18 | 264,20 | 83 | 2,4 | |
LVE-0250 | 250 | 138 | 65 | 25 | 22 | 8,12 | 324,68 | 102 | 3,0 | |
LVE-0300 | 300 | 168 | 79 | 27 | 24 | 11,89 | 378,79 | 119 | 5,0 | |
LVE-0350 | 350 | 196 | 92 | 29 | 25 | 16,18 | 429,72 | 135 | 5,8 | |
LVE-0400 | 400 | 419 | 197 | 51 | 44 | 39,47 | 490,20 | 154 | 9,5 | |
LVE-0450 | 450 | 477 | 225 | 54 | 47 | 50,52 | 541,13 | 170 | 10,7 | |
LVE-0500 | 500 | 530 | 250 | 56 | 49 | 62,36 | 598,42 | 188 | 15,1 | |
LVE-0600 | 600 | 636 | 299 | 60 | 52 | 89,80 | 700,28 | 220 | 18,2 | |
LVE-0700 | 700 | 742 | 349 | 64 | 55 | 122,21 | 814,87 | 256 | 25,9 | |
LVE-0800 | 800 | 848 | 399 | 67 | 58 | 159,61 | 929,47 | 292 | 29,6 | |
LVE-0900 | 900 | 954 | 449 | 70 | 60 | 202,00 | 1.028,14 | 323 | 33,3 | |
LVE-1000 | 1000 | 1065 | 501 | 73 | 63 | 250,50 | 1.126,82 | 354 | 37,0 | |
LVE-1200 | 1200 | 1677 | 789 | 94 | 81 | 473,39 | 1.330,54 | 418 | 59,9 | |
LVE-1400 | 1400 | 1956 | 920 | 99 | 86 | 644,27 | 1.527,89 | 480 | 69,9 | |
LVE-1600 | 1600 | 1984 | 933 | 140 | 121 | 747,10 | 1.763,44 | 554 | 161,0 | |
LVE-1800 | 1800 | 2234 | 1050 | 146 | 126 | 946,00 | 1.967,16 | 618 | 181,0 |


Bearing diameter KK∅ |
Attachment per ring Stat. load rate C0 ax. Stat. load rate C0 rad. Dyn. load rate C ax. Dyn. load rate C rad. Stat. Moment C0m Weight Available |
{{(idx +1)}}
|
{{ fi.description }} {{ fi.name }} |
{{ fi.firstParameter }} |

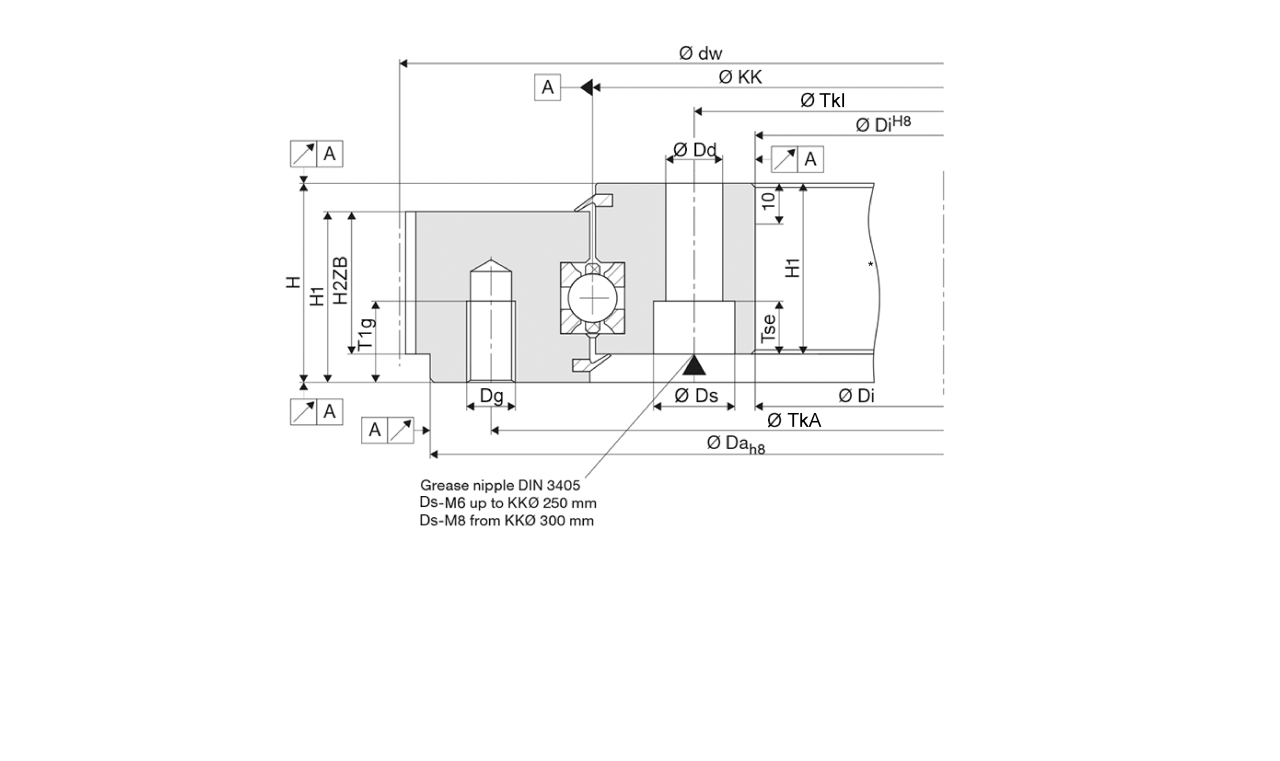

Technical Drawing |

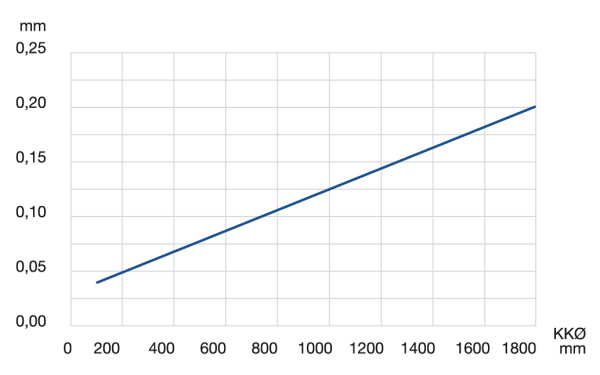

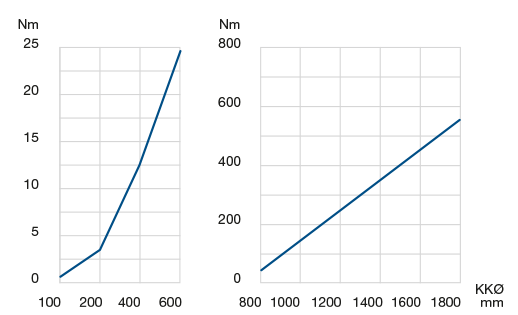

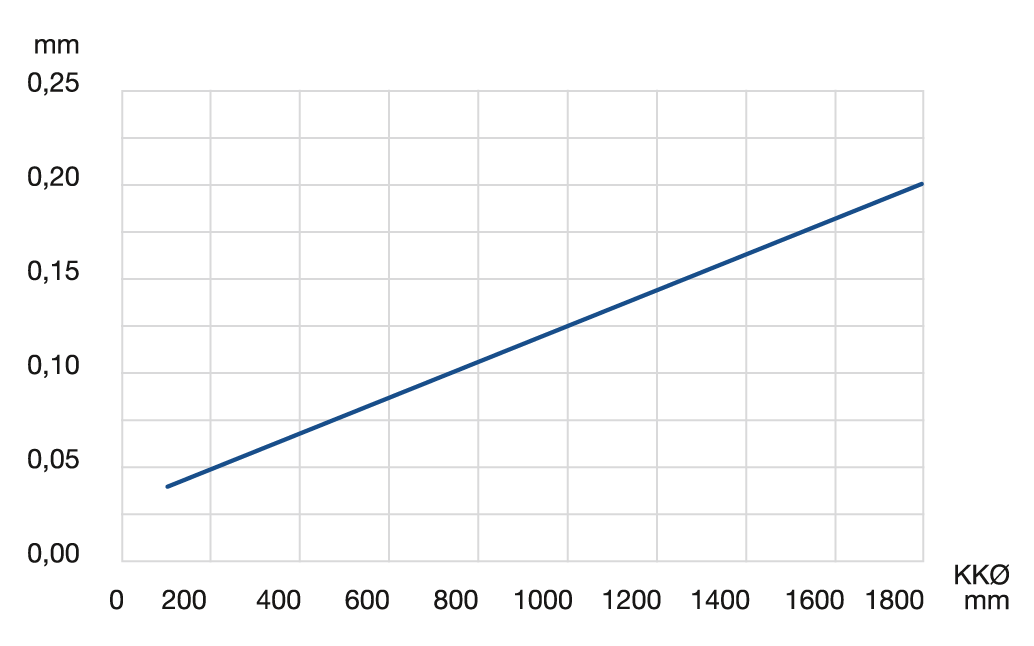

Diagrams |
Data sheet (pdf) |
