Dunringlager
met geprofilieerde loopbanen
Type LSA

Product image Dunringlager met geprofilieerde loopbanen Type LSA

5% discount
on your first online order!

Description

Franke dunringlagers van het type LSA overtuigen met een lichte loop, compacte bouw, eenvoudige montage en een gustige prijs. Dunringlagers van het type LSA bestaan uit een binnen en buitenring met een geharde geprofileerde loopbaan en een kunststof kooi met kogels. Een kogel heeft per ring 2 contactpunten zodat het 4-punts contact systeem blijft bestaan. De ringen zijn gedeeld en daarmee eenvoudig in een behuizing te plaatsen.

Properties - Evaluation

Smooth running
Accuracy
Speed
Stiffness
Assembly
Price

Technical data

Material

Loopringen: gehard en ontlaat chroom-silicium staal
Rollende elementen: chroomstaal
Kooi: polyamide of thermoplastisch polyurethaan

Operating temperature

–20 °C tot +80 °C, kortstondig tot +100 °C

Peripheral speed

Max. 5 m/s, zonder dichtingen max. 10 m/s

Lubricant

Shell Gadus S3 V220 C2

Technical advice


Data tables

Compare data and calculate load cases

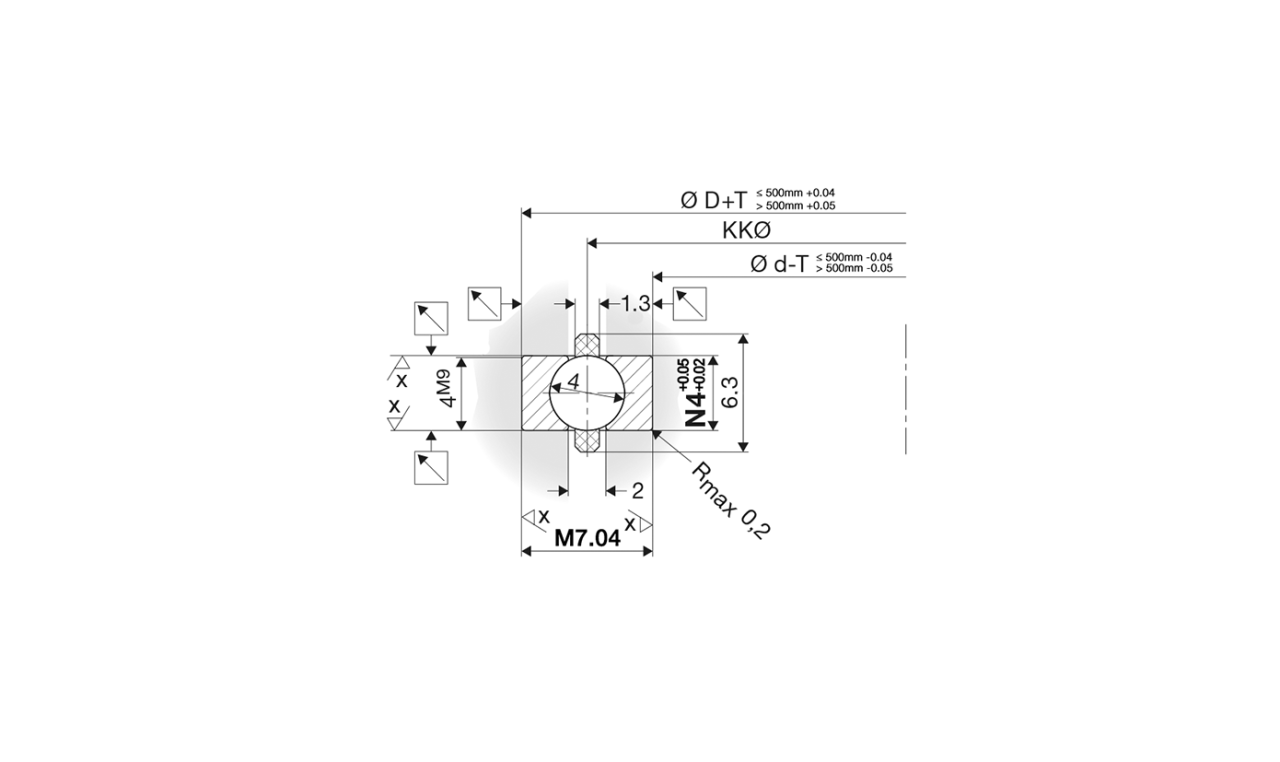

Technical Drawing LSA 4
LSA 4 M x N 7,04 x 4 mm MyFranke
Name d
inch
Dimensions
mm
Load ratings
kN
Stat. M.
kNm
Weight
kg
CAD-Download
Calculate loads
D d C0a C0r Ca Cr C0m
LSA4-04.0 4,0 115,68 101,6 25 12 7 6 0,6 0,05

Register now to get
access to MyFranke.

LSA4-04.5 4,5 128,38 114,3 28 13 7 6 0,8 0,06
LSA4-05.0 5,0 141,08 127,0 31 15 7 6 0,9 0,07
LSA4-05.5 5,5 153,78 139,7 34 16 8 7 1,2 0,07
LSA4-06.0 6,0 166,48 152,4 37 18 8 7 1,4 0,08
LSA4-06.5 6,5 179,18 165,1 40 19 8 7 1,6 0,08
LSA4-07.0 7,0 191,88 177,8 43 20 8 7 1,9 0,09
LSA4-07.5 7,5 204,58 190,5 47 22 9 7 2,1 0,10
LSA4-08.0 8,0 217,28 203,2 49 23 9 7 2,4 0,10
LSA4-08.5 8,5 229,98 215,9 53 25 9 8 2,7 0,11
LSA4-09.0 9,0 242,68 228,6 55 26 9 8 3,0 0,12
LSA4-09.5 9,5 255,38 241,3 58 27 9 8 3,4 0,12
LSA4-10.0 10,0 268,08 254,0 62 29 9 8 3,7 0,13
LSA4-11.0 11,0 293,48 279,4 68 32 10 8 4,5 0,14
LSA4-12.0 12,0 318,88 304,8 73 35 10 9 5,3 0,15
LSA4-13.0 13,0 344,28 330,2 79 37 10 9 6,3 0,17
LSA4-14.0 14,0 369,68 355,6 86 40 11 9 7,3 0,18
LSA4-15.0 15,0 395,08 381,0 92 43 11 9 8,3 0,19

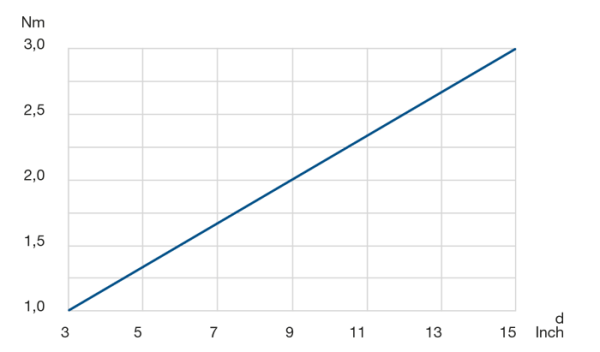

Rotational resistance
Diagram Rotational resistance LSA 4

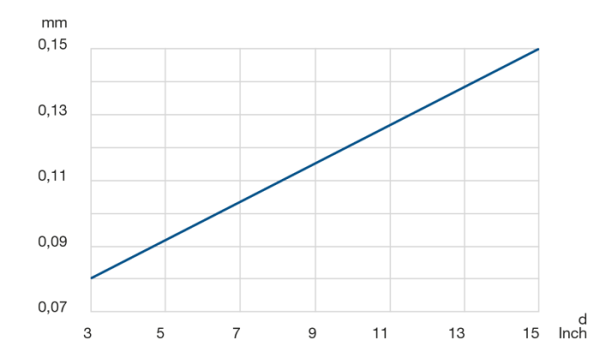

Radial and axial accuracy
Diagram Radial and axial accuracy LSA 4
Technical Drawing LSA 6
LSA 6 M x N 6,4 x 6,4 mm MyFranke
Name d
inch
Dimensions
mm
Load ratings
kN
Stat. M.
kNm
Weight
kg
CAD-Download
Calculate loads
D d C0a C0r Ca Cr C0m
LSA6-04.5 4,5 127,10 114,3 39 18 7 6 1,1 0,09

Register now to get
access to MyFranke.

LSA6-05.0 5,0 139,80 127,0 44 21 7 6 1,3 0,10
LSA6-05.5 5,5 152,50 139,7 48 23 8 7 1,6 0,11
LSA6-06.0 6,0 165,20 152,4 52 25 8 7 1,9 0,12
LSA6-06.5 6,5 177,90 165,1 57 27 8 7 2,2 0,13
LSA6-07.0 7,0 190,60 177,8 61 29 8 7 2,6 0,14
LSA6-07.5 7,5 203,30 190,5 65 31 8 7 3,0 0,15
LSA6-08.0 8,0 216,00 203,2 69 33 9 8 3,4 0,16
LSA6-08.5 8,5 228,70 215,9 73 34 9 8 3,8 0,17
LSA6-09.0 9,0 241,40 228,6 78 37 9 8 4,3 0,18
LSA6-09.5 9,5 254,10 241,3 82 39 9 8 4,8 0,19
LSA6-10.0 10,0 266,80 254,0 86 40 9 8 5,2 0,20
LSA6-11.0 11,0 292,20 279,4 95 45 10 8 6,3 0,21
LSA6-12.0 12,0 317,60 304,8 103 49 10 9 7,5 0,23
LSA6-13.0 13,0 343,00 330,2 112 53 10 9 8,8 0,25
LSA6-14.0 14,0 368,40 355,6 120 56 11 9 10,2 0,27
LSA6-15.0 15,0 393,80 381,0 129 61 11 9 11,7 0,29
Rotational resistance
Diagram Rotational resistance LSA 6
Radial and axial accurancy
Diagram Radial and axial accurancy LSA 6
Technical Drawing LSA 8
LSA 8 M x N 8 x 7,94 mm MyFranke
Name d
inch
Dimensions
mm
Load ratings
kN
Stat. M.
kNm
Weight
kg
CAD-Download
Calculate loads
D d C0a C0r Ca Cr C0m
LSA8-05.5 5,5 155,70 139,7 59 28 13 11 2,0 0,17

Register now to get
access to MyFranke.

LSA8-06.0 6,0 168,40 152,4 64 30 13 11 2,4 0,19
LSA8-06.5 6,5 181,10 165,1 69 32 13 12 2,8 0,20
LSA8-07.0 7,0 193,80 177,8 74 35 14 12 3,2 0,22
LSA8-07.5 7,5 206,50 190,5 79 37 14 12 3,7 0,23
LSA8-08.0 8,0 219,20 203,2 84 40 15 13 4,2 0,25
LSA8-08.5 8,5 231,90 215,9 90 42 15 13 4,7 0,26
LSA8-09.0 9,0 244,60 228,6 94 44 15 13 5,2 0,28
LSA8-09.5 9,5 257,30 241,3 100 47 15 13 5,8 0,29
LSA8-10.0 10,0 270,00 254,0 105 50 16 14 6,5 0,31
LSA8-11.0 11,0 295,40 279,4 115 54 16 14 7,8 0,34
LSA8-12.0 12,0 320,80 304,8 125 59 17 15 9,2 0,37
LSA8-13.0 13,0 346,20 330,2 136 64 17 15 10,8 0,40
LSA8-14.0 14,0 371,60 355,6 146 69 18 15 12,5 0,43
LSA8-15.0 15,0 397,00 381,0 156 73 18 16 14,3 0,46
LSA8-16.0 16,0 422,40 406,4 167 78 19 16 16,3 0,49
LSA8-17.0 17,0 447,80 431,8 177 83 19 16 18,3 0,52
LSA8-18.0 18,0 473,20 457,2 187 88 19 17 20,4 0,55
LSA8-19.0 19,0 498,60 482,6 198 93 20 17 22,8 0,58
LSA8-20.0 20,0 524,00 508,0 208 98 20 17 25,2 0,61
LSA8-22.0 22,0 574,80 558,8 228 107 21 18 30,4 0,67
LSA8-24.0 24,0 625,60 609,6 248 117 22 19 36,1 0,73
LSA8-26.0 26,0 676,40 660,4 269 127 22 19 42,3 0,79
LSA8-28.0 28,0 727,20 711,2 290 136 23 20 49,0 0,85
LSA8-30.0 30,0 778,00 762,0 311 146 23 20 56,3 0,91
Rotational resistance
Diagram Rotational resistance LSA 8
Radial and axial accurancy
Diagram Radial and axial accurancy LSA 8
Mounting space M X N
Bearing diameter KK∅
Wire diameter λ Stat. load rate C0 ax. Stat. load rate C0 rad. Dyn. load rate C ax. Dyn. load rate C rad. Static moment C0m Weight
